TESTMANN TH-450 High Precision Colour Screen Portable Hardness Tester (Leeb D)

Name: TESTMANN TH-450 High Precision Colour Screen Portable Hardness Tester (Leeb D)
Brand: DHARA AGENCY
Price: 42000.0 INR
Availability: InStock

Price 42000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TESTMANN TH-450 High Precision Colour Screen Portable Hardness Tester (Leeb D) Specification

Display Type
3.5 Color TFT display

Response Time
Instantaneous, result after impact

Test Range
170-960 HLD (Leeb Hardness)

Accuracy
6 HLD

Frequency
Impact frequency depends on probe, typically manual operation

Automation Grade
Semi-automatic

Interface Type
USB

Mounting Type
Handheld/portable

Resolution
1 HLD

Operating Voltage
3.7V (Li-ion internal battery)

Hardness
Leeb D scale, converts to HB, HRB, HRC, HV, HS

Port Size
USB port for data transfer & charging

Features
High-precision, color screen, lightweight, backlit display, data storage, one-touch printing (optional printer support), auto power-off, multilingual menu

Application
Metal hardness testing for production, quality control, and field inspection

Equipment Type
Portable Hardness Tester

Power Supply
Rechargeable Li-ion battery, DC 5V charging

Temperature
0C to 40C operating temperature

Humidity
90% RH

Specimen Size
Minimum weight: 2 kg (on solid support), minimum thickness: 3 mm

Number of Specimens
Single or continuous mode

Measuring Range
HLD, and conversion to HB, HRB, HRC, HV, HS

Max Height
Not limited

Usage
Direct testing on metal workpieces

Capacity
Data storage: up to 600 groups (impact times: 32~1) including single measured value, average value, impact direction, times, material, hardness scale etc.

Machine Weight
5 Kilograms (kg)

Test Speed
Standard Leeb D impact (6 m/s impact velocity)

Test Width
Not applicable (portable tester)

Test Stroke
Leeb D probe stroke

Control Mode
Keypad operation, menu-driven interface

Charging Mode
USB charging

Case Material
ABS engineering plastic

Memory Storage
400 groups (impact times: 1~32) each group

Alarm Function
Upper/lower limit alarm

Elapsed Time Display
Yes

Data Output
USB to PC

Battery Life
Continuous working time 150 hours

Working Principle
Leeb rebound hardness testing

Statistical Analysis
Mean, max, min, number of tests

Data Review
On-screen data review

Impact Device Type
Leeb D (Standard)

Operating Time
Up to 150 hours with backlight off

Signal Processing
Digital

Languages Supported
English/Chinese

Calibration Function
Yes, user calibration

TESTMANN TH-450 High Precision Colour Screen Portable Hardness Tester (Leeb D) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About TESTMANN TH-450 High Precision Colour Screen Portable Hardness Tester (Leeb D)

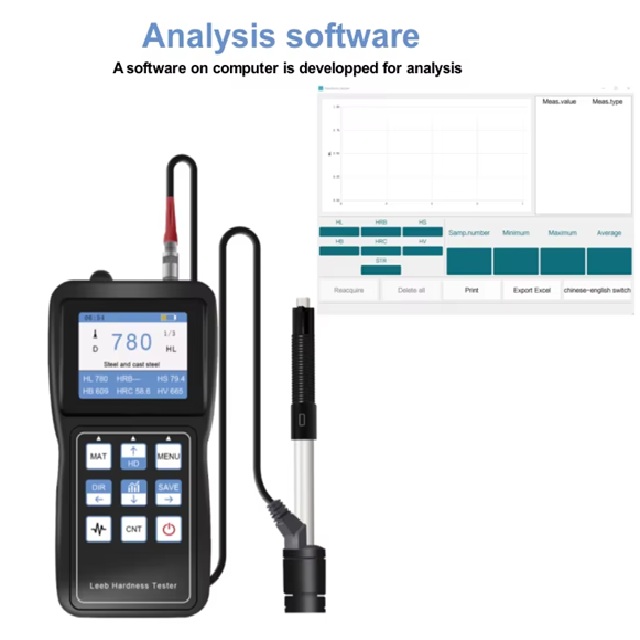

High-Performance ARM processor with CORTEX M4Processing ChipValues in all Hardness Scales Displayed at aglance on the main interfaceAutomatic Impact Device Probe identificationwith plug and play featureImpact waveform bench marking (PROCEQ type)to judge the effectiveness of the test and workingstate of Impact DeviceUSB communication interface with dataprocessing SoftwareOptional Bluetooth printerPower Source: 2 x 1.5V AA Battery

High-Precision Portable Hardness Testing

The TH-450 brings advanced Leeb rebound technology to your fingertips, enabling fast and reliable hardness measurements across a wide range of metals. With instantaneous digital response and multi-scale conversions, quality assessments are seamless and accurate, perfectly suited for demanding inspection environments.

User-Friendly Interface & Versatile Storage

Navigating the device is effortless thanks to the intuitive keypad and menu-driven color screen. Store up to 600 test groups, review statistical data, and export easily via USB. The TH-450 empowers users with rich data management-crucial for process optimization and traceability.

Endurance, Adaptability & Efficiency

Boasting a robust ABS body, 150-hour battery endurance, and USB charging, the TH-450 is perfect for extended fieldwork. Its portable form supports single and continuous modes, tests specimens down to 2 kg and 3 mm, and offers features like upper/lower limit alarms and auto power-off, maximizing operational productivity.

FAQ's of TESTMANN TH-450 High Precision Colour Screen Portable Hardness Tester (Leeb D):

Q: How does the TESTMANN TH-450 perform hardness testing on metals?

A: The TH-450 uses the Leeb rebound principle, where a standardized impact device (Leeb D) strikes the test surface and measures the rebound velocity. This method accurately determines the hardness of metals and displays the result instantly on the color screen.

Q: What types of metal can I test with this device, and what hardness scales are supported?

A: You can use the TH-450 to test a wide variety of metals. It measures in the Leeb Hardness (HLD) scale and offers automatic conversions to Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), and Shore (HS) for broad application support.

Q: When should I perform calibration on the tester, and is user calibration possible?

A: Calibration is recommended when the tester is newly set up, after impact device replacement, or if test results seem inconsistent. The TH-450 includes a user calibration function, allowing in-field adjustment to maintain accuracy.

Q: Where can I review or export my hardness test data?

A: Test data can be reviewed directly on the tester's color display. For further analysis or recordkeeping, data can be exported to a PC via the USB interface, supporting streamlined reporting and documentation.

Q: How is the device powered, and how long does the battery last during operation?

A: The TH-450 is powered by a rechargeable lithium-ion battery, supporting up to 150 hours of continuous use with the backlight off. Charging is conveniently done via USB, ensuring reliable operation during extended work sessions.

Q: What specimen sizes are suitable for testing with the TH-450?

A: The minimum specimen requirement is 2 kg in weight (on a solid support) and 3 mm in thickness. These guidelines help ensure measurement accuracy when testing workpieces directly.

Q: What are the key benefits of using the TH-450 for metal hardness testing?

A: The TH-450 delivers high-precision, immediate hardness results, flexible portability, extensive memory storage, multi-language menus, and efficient data management. Its sturdy build and long battery life make it ideal for both laboratory and field inspections.
