Digital Surface Roughness Tester With Bluetooth

Send Inquiry

Request To Call Back

Digital Surface Roughness Tester With Bluetooth

Name: Digital Surface Roughness Tester With Bluetooth
Brand: DHARA AGENCY
Price: 36000.0 INR
Availability: InStock

Price 36000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Digital Surface Roughness Tester With Bluetooth Specification

Mounting Type
Handheld

Resolution
0.001 m

Measuring Range
Ra 0.05-10.0 m, Rz 0.1-50.0 m

Humidity
< 80% RH

Application
Surface Finish Measurement

Display Type
LCD Digital Display

Interface Type
Bluetooth and USB

Test Range
Ra: 0.05-10.0 m, Rz: 0.1-50.0 m

Operating Voltage
3.7V DC

Equipment Type
Digital Surface Roughness Tester

Features
Portable, Bluetooth Wireless, Data Storage, USB Rechargeable

Specimen Size
Customizable, flat or small cylinder

Number of Specimens
1 at a time

Response Time
2 s

Automation Grade
Semi-Automatic

Frequency
No Frequency (Non-Destructive)

Temperature
0C-40C

Power Supply
Rechargeable Lithium Battery

Port Size
USB-C, Bluetooth Wireless

Accuracy
5%

Max Height
60 mm (probe movement)

Hardness
Measuring Stylus: Diamond tip, ~90 HRa

Usage
On-site and Laboratory Testing

Machine Weight
About 420 g (main unit)

Test Speed
1 mm/s

Test Width
17.5 mm

Test Stroke
17.5 mm

Control Mode
Microprocessor Controlled

Cut-off Length (Selectable)
0.25, 0.8, 2.5 mm

Pickup Type
Piezoelectric ceramic type

Calibration
Automatic, with calibration specimen included

Language Support
Multi-language

Shell Material
High-strength ABS plastic

Alarm Functions
Low battery alert, over-range warning

Charging Time
Approx. 4 hours

Data Storage
Store up to 100 results

Profile Types
Ra, Rz, Rq, Rt, Rp, Rc, Rmax, Ry, Rsm

Stylus Tip Radius
10 m

Data Output
Reports via Bluetooth or USB to PC/mobile app

Instrument Dimension
158 mm x 63 mm x 46 mm

Measurement Units
m (micron), inch

Battery Working Hours
Approx. 20 hours

Digital Surface Roughness Tester With Bluetooth Trade Information

Minimum Order Quantity
1 Set

Delivery Time
1 Days

About Digital Surface Roughness Tester With Bluetooth

GOYOJO Make SRG-1 Handheld Digital Surface Roughness Tester with Bluetooth Ra, Rz, Rq, Rt Range Profilometer Surface Roughness Tester Features: Features an extruded aluminium mould design for robust durability and exceptional electromagnetic interference resistance, aligning with contemporary design trends. Employs a low-power ARM microprocessor for data processing and computation, substantially enhancing measurement and calculation speeds. Features a 1.14-inch IPS TFT LCD display with high brightness and no visual blind spots, suitable for diverse environments. Powered by an internal lithium battery for extended operation. Includes a Bluetooth interface for communication with smartphones and other Bluetooth devices. USB interface enables communication with PC software. Stores up to 500 sets of measurement data. Real-time battery level monitoring with display provides timely charging alerts. Auto-shutdown function and low-power hardware/software design ensure extended operational time for diverse field applications. Sensor probe features a protective cover to safeguard the probe and maintain measurement accuracy.

Advanced Surface Finish Measurement

Our tester delivers accurate surface profiles including Ra, Rz, Rq, Rt, and more, using a high-hardness diamond-tipped stylus and precise piezoelectric ceramic sensor. With selectable cut-off lengths and automatic calibration, you achieve reliable results ideal for quality control and research settings.

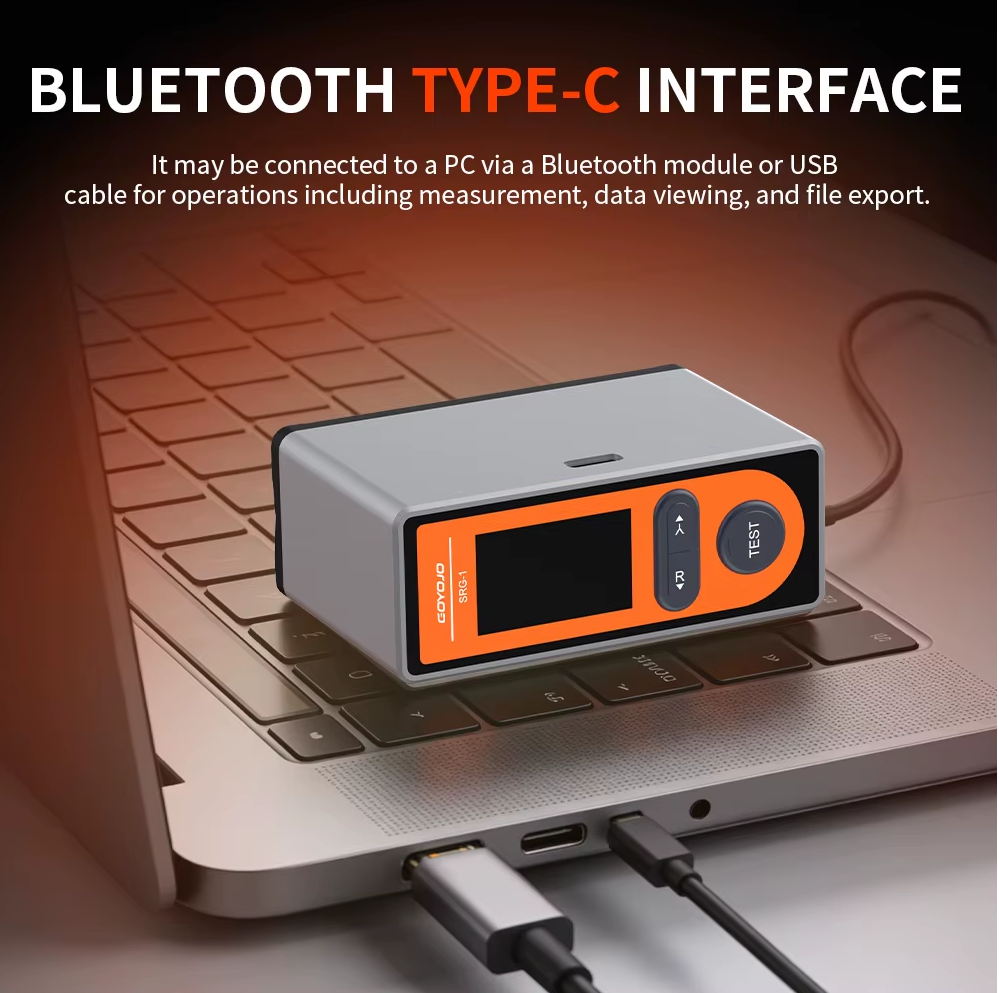

Enhanced Connectivity and Data Handling

With integrated Bluetooth and USB-C interfaces, you can instantly transfer data to PCs or mobile devices, generating comprehensive reports. The device stores up to 100 results, streamlining workflows and improving traceability in production environments.

User-Friendly and Durable Design

The compact, handheld tester features a robust ABS plastic shell, clear LCD display, and simple controls. It offers multi-language support, low battery and over-range alarms, and can be used for flat or small cylindrical specimens-making it suitable for versatile on-site and laboratory applications.

FAQ's of Digital Surface Roughness Tester With Bluetooth:

Q: How does the digital surface roughness tester operate?

A: It operates by moving a diamond-tipped piezoelectric sensor across the test surface at a speed of 1 mm/s. The device measures various roughness parameters (such as Ra, Rz, Rq) and displays the results digitally. It features automatic calibration for enhanced accuracy.

Q: What types of profiles and measuring ranges can I evaluate with this tester?

A: You can measure multiple surface roughness profiles: Ra (0.05-10.0 m), Rz (0.1-50.0 m), Rq, Rt, Rp, Rc, Rmax, Ry, and Rsm. The instrument is suitable for both flat and small cylindrical samples.

Q: When should I perform calibration and is a calibration specimen included?

A: Calibration is recommended before initial use and periodically during regular operation to maintain accuracy. The tester comes with an included calibration specimen and supports automatic calibration procedures.

Q: Where can this device be used, and what types of specimens can it measure?

A: It is ideal for both laboratory and on-site industrial applications. You can test a wide range of customizable specimens, provided they are flat or small cylinders within the allowable size and movement constraints.

Q: What is the data transfer process for test results?

A: Test results can be stored internally (up to 100 readings) and exported via Bluetooth or USB-C to a PC or mobile app, allowing for easy report generation and data management.

Q: What are the primary benefits of using this tester?

A: Main benefits include portable design, fast and accurate measurement, automated calibration, multilingual interface, and easy data sharing-optimizing your surface finish quality control processes.
