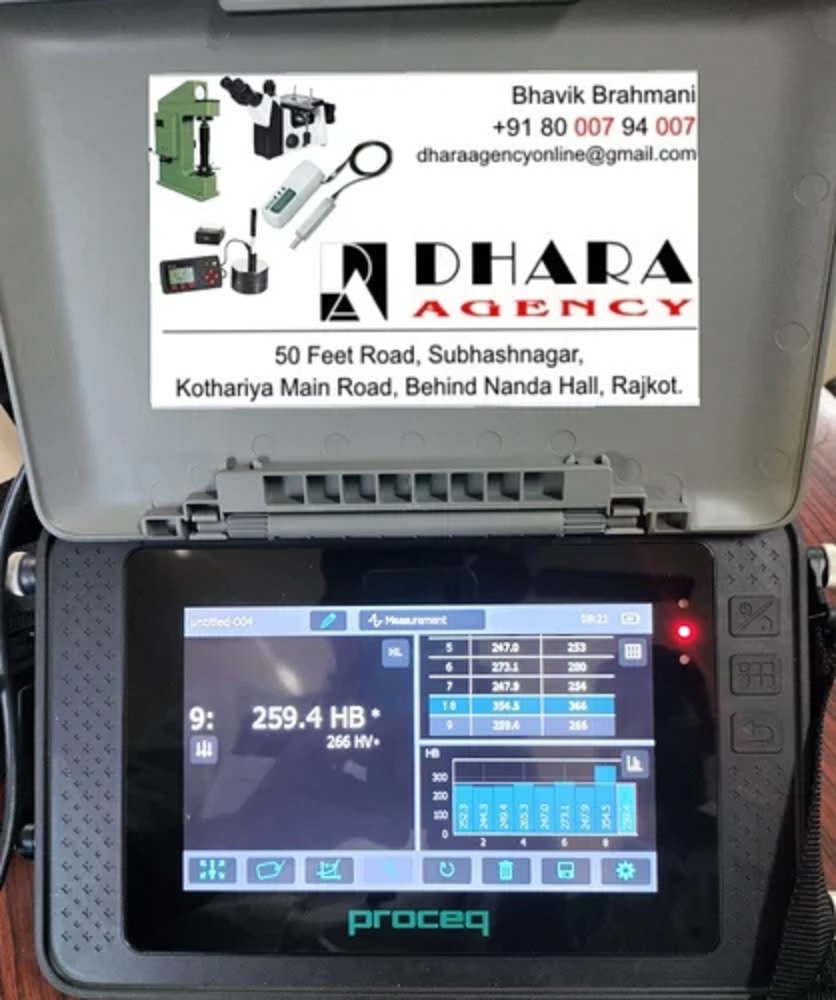

Equotip 550 Leeb Hardness Tester

About Equotip 550 Leeb Hardness Tester

Equotip 550 Leeb Hardness Testeris the most versatile all-in-one solution for portable hardness testing. The Leeb hardness principle is based on the dynamic (rebound) method and is best suited for on-site testing of heavy, large or already installed parts.In combination with the Equotip Portable Rockwell Probe, the Equotip 550 can be extended with the traditional Rockwell static test method. This additionally allows automatic on-site correlation of Leeb to Portable Rockwell true indention hardness value.The new generation Equotip Touch screen interface is specifically designed to provide an exceptional user experience. The enhanced software provides interactive wizards, automatic verification processes, personalization options and custom report functions. Furthermore, it is compatible with upcoming developments.

Equotip Leeb:

• Automatic conversions to all common hardness scales (HV, HB, HRC, HRB, HRA, HS, Rm) as required
• Highly accurate 4 HL (0.5%% at 800 HL) with automatic correction for impact directions
• Wide measurement range with a variety of impact devices and support rings to serve most hardness testing requirements
• Extensive range of precise hardness test blocks available for each impact device with different hardness levels for regular verification

Equotip 550 Touch Screen Unit:

• 7 color display 800x480 pixels
• Modular concept: Flexible configuration for various industry applications with a wide range of probes and accessories
• Combined method: Automatic on-site correlation of Leeb to Portable Rockwell true indention hardness value
• Guiding wizards: Predefined workflows to increase process reliability and to improve measurement precision
• Automatic verification: Step by step verification in line with ISO 16859 and ASTM A956
• Interactive guides: On-screen notifications to obtain the most relevant settings for your application
• Conversion curves: Create, edit and verify material conversion curves directly on the instrument
• Custom reports: Modular generator allows customized measurement reports
• Automation option: Integration of NDT automation into quality management systems and automated testing environments
• Housing specially designed to be used on-site in harsh environments (IP 54), including carrying strap, integrated stand and sunshield cover
• High resolution color display
• Battery lifetime of > 8h
• 8 GB Flash memory
• Dual core processor supporting diverse communication and peripheral interfaces: Probe Connector, USB Host, USB Device and Ethernet
• Future proof investment through direct compatibility with upcoming developments

Standards:

• ASTM A956 / E140 / A370 , ISO EN 16859 (publication upcoming), DIN 50156, GB/T 17394, JB/T 9378

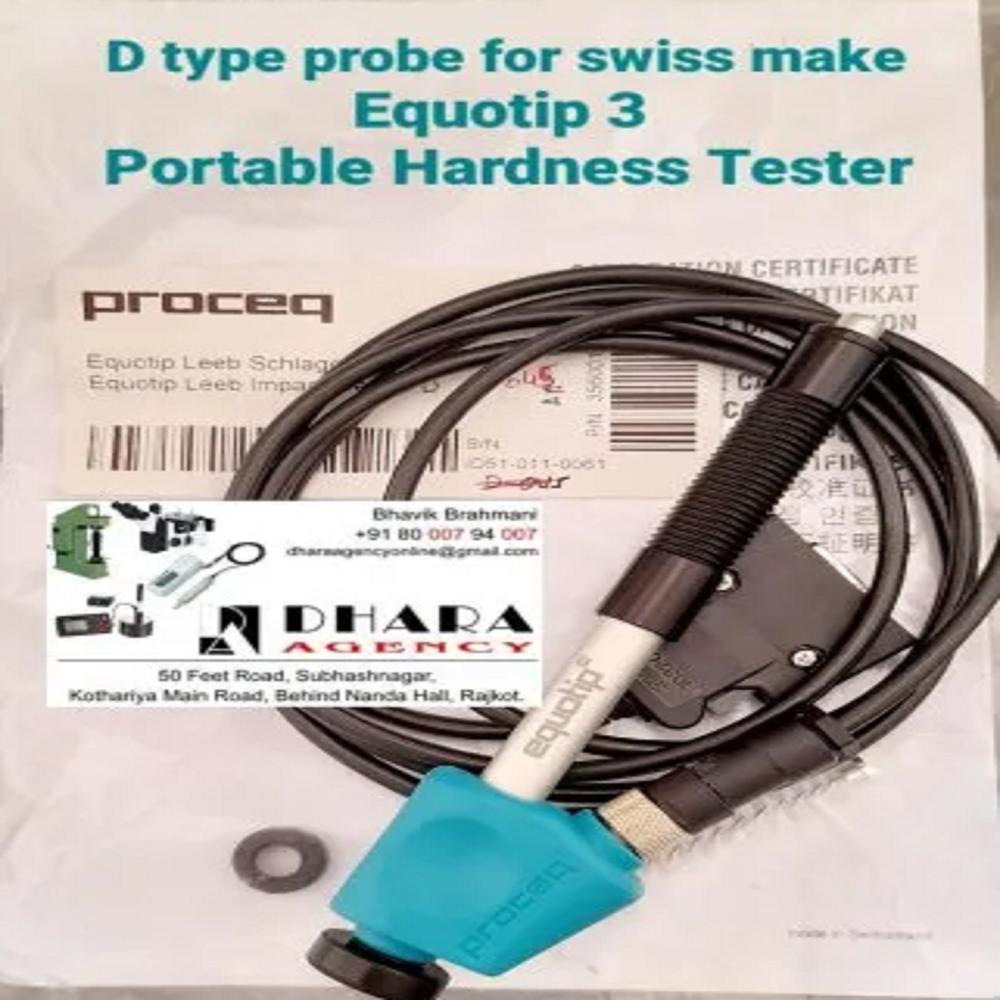

Equotip Leeb Impact Devices:

• Measuring range: 1-999 HL
• Measuring accuracy: 4 HL (0.5 %% at 800 HL)
• Resolution: 1 HL; 1 HV; 1 HB; 0.1 HRA; 0.1 HRB; 0.1 HRC; 0.1 HS; 1 MPa (N/mm2)
• Impact direction: Automatic compensation (excl. DL probe)
• Impact energy: - 11.5 Nmm for D, DC, E, S probes
• - 11.1 Nmm for DL probe
• - 3.0 Nmm for C probe
• - 90.0 Nmm for G probe
• Ball indenter : - Tungsten carbide, 3.0 mm dia for C, D, DC probes
• - Tungsten carbide, 2.78 mm dia for DL probe
• - Tungsten carbide, 5.0 mm dia for G probe
• - Ceramics, 3.0 mm dia for S probe - Polycrystalline diamond, 3.0 mm dia for E probe
• Operating temperature : 10C to 50C

Advanced Industrial Hardness Testing

Built for demanding industrial environments, the Equotip 550 Leeb Hardness Tester provides reliable and precise hardness assessments. Its semi-automatic operation streamlines the testing process while the durable plastic construction ensures long-lasting use. The device supports both USB and Bluetooth connectivity, allowing for efficient data management and integration into modern workflows.


Convenient Data Accessibility

With USB and Bluetooth interfaces, the Equotip 550 enables seamless data transfer. Whether you are working in the field or within a lab, you can effortlessly connect the tester to computers or mobile devices, making it ideal for a variety of industrial testing needs.
